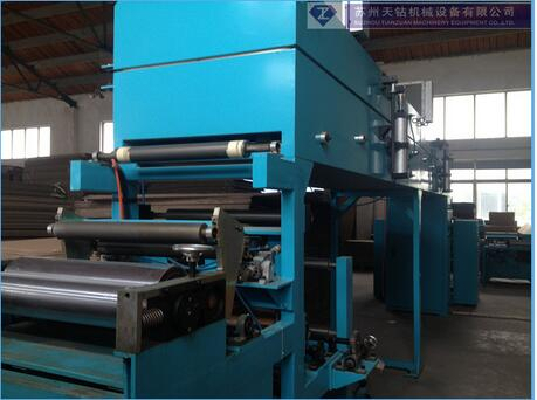

Application of TZ (BOPP adhesive tape) coating machine equipment:

The production line is suitable for the coating of BOPP adhesive tape.

TZ (BOPP adhesive tape) coating machine equipment characteristics:

1. Wide adaptability and can be professionally designed according to the nature of substrates; 2. The temperature of oven ismultistratumcontrolled, according to the requirements of technology, precise control of each segment of the oven temperature; 3. Control of the substrate contraction minimum volume, variable frequency speed regulation, and the multi-point synchronous controller to control the whole machine synchronous operation. Oven structure, coating width, the glue and heating mode can be customized according to customer demand.

Operation method of 500MM adhesive tape coating machine

Tape coating machine speed control part:

Tape machine using advanced stepless variable speed motor, can continue to work at high speed and high level of arbitrary regulation, simple operation, production workers only need 2 - 1.

2 adhesive tape machines. Temperature control part:

Tape machine adopts advanced electronic temperature control, automatic temperature control to achieve automatic.

3 correcting part:

Tape machine using the advanced foreign technology, the installation of a full automatic Gao Min degree of deviation and the infrared Gao Min probe enough to ensure that the machine production of products at the edge of the line without waste.

4 adhesive tape machine printing part:

Tape machine with double color gravure roller printing, printing and coating substrate width of the same width.

5 adhesive tape machine drying part:

Tape machine using the latest electric steam heating. Subsection temperature control hot air circulation heating evenly, temperature liquid crystal display, the host electric power is only 1.1 kilowatts of heating power according to the size of the device to set.

6 after drying:

A good coating adhesive film after drying, the rolling mechanism of final rolled into large. Roll up the number of meters according to the customer need to set. Jumbo reel to set the number of meters, it can automatically stop.

Coating work will be completed.

In addition, the need to coordinate with the cutting machine for cutting processing, manufacturing into a separate sealing tape small volumes, packing and shipping.
